IoT Device Security Assessment

This IoT Device Security Assessment project presents the design and development aimed at evaluating the security posture of consumer Internet of Things (IoT) devices across network, application, and firmware layers. Motivated by the rapid expansion of IoT ecosystems and the corresponding rise in security risks, the project applies an evidence-driven methodology inspired by industry standards such as the OWASP IoT Top 10 and NIST guidelines. The assessment framework guides the structured analysis of device behaviour, cloud interactions, and internal software components, ultimately enabling a comprehensive understanding of vulnerabilities and their implications.

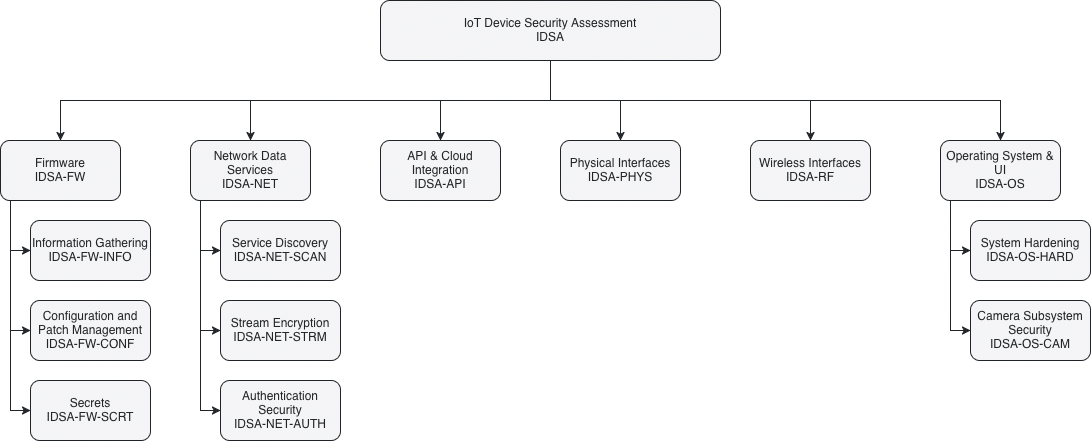

Component Overview

Testing Checklist

The following is the list of items to test during the assessment:

Status column can be set for values similar to "Pass", "Fail", "N/A".

Severity column can be set for values "0-5" with 0 as the lowest to 5 being the highest potential magnitude of harm or damage if a risk event occurs (how bad).

3.1 Firmware (IDSA-FW)

Test ID Test Name Status Severity Notes
IDSA-FW-INFO Information Gathering
IDSA-FW-INFO-001 Disclosure of Source Code and Binaries Analyze Blink updates via App; Use binwalk on RPi filesystem/EEPROM.
IDSA-FW-INFO-002 Disclosure of Implementation Details Check for exposed hardware specs or boot logs.
IDSA-FW-CONF Configuration and Patch Management
IDSA-FW-CONF-001 Usage of Outdated Software Check apt packages on RPi; Verify Blink firmware version in-app.
IDSA-FW-CONF-002 Update Mechanism Security Test Blink app-based updates vs. RPi sudo apt full-upgrade security
IDSA-FW-SCRT Secrets
IDSA-FW-SCRT-001 Secrets Stored in Public Storage Search for hardcoded keys in binwalk extracted files.
IDSA-FW-SCRT-002 Unencrypted Storage of Secrets Check /etc/ or config files on RPi; Check local cache for Blink.

3.2 Network Data Services (IDSA-NET)

Test ID Test Name Status Severity Notes
IDSA-NET-SCAN Service Discovery
IDSA-NET-SCAN-001 Open Port & Service Enumeration Use nmap to identify listening ports, service versions, and OS fingerprints.
IDSA-NET-SCAN-002 Vulnerability Scanning (NSE) Use nmap scripting engine (NSE) to check for known CVEs on open services.
IDSA-NET-STRM Stream Encryption
IDSA-NET-STRM-001 Encrypted Media Streaming Use Wireshark to verify if Blink/RPi (WebRTC) streams are encrypted.
IDSA-NET-STRM-002 LAN Data Transmission Monitor Wi-Fi traffic for unencrypted PII or command packets. Convert captured packets to images using Foremost.
IDSA-NET-AUTH Authentication Security
IDSA-NET-AUTH-001 Brute Force / Rainbow Table Test Blink App login and RPi SSH/Local login for rate limiting.
IDSA-NET-AUTH-002 Phishing & Session Hijacking Evaluate Blink UI for credential harvesting risks.

3.3 API & Cloud Integration (IDSA-API)

Test ID Test Name Status Severity Notes
IDSA-API-001 Insecure Cloud Endpoints Intercept Blink App-to-Cloud API calls (Burp Suite).
IDSA-API-002 Broken Object Level Auth (BOLA) Can one user access another’s stream by changing a Device ID?

3.4 Physical Interfaces (IDSA-PHYS)

Test ID Test Name Status Severity Notes
IDSA-PHYS-001 USB Host Detection (Win/Lin/Mac) Does it mount as a camera/webcam or a storage device?
IDSA-PHYS-002 Unauthorized Peripheral Access Does plugging it in provide a serial shell or unintended file access?
IDSA-PHYS-003 HID Attack Surface Can the device be spoofed to act as a keyboard when plugged in?

3.5 Wireless Interfaces (IDSA-RF)

Test ID Test Name Status Severity Notes
IDSA-RF-001 Protocol Analysis (Wireshark) Verify WPA2/3 implementation and handshake security.
IDSA-RF-002 De-authentication Sensitivity Does the camera stop recording/fail insecurely during a Wi-Fi jam?

3.6 Operating System & UI (IDSA-OS)

Test ID Test Name Status Severity Notes
IDSA-OS-HARD System Hardening
IDSA-OS-HARD-001 Raspberry Pi OS Hardening Check for default pi credentials or unnecessary services.
IDSA-OS-HARD-002 Blink App UI Logic Test for bypasses in the app’s lock screen or biometric auth.
IDSA-OS-CAM Camera Subsystem Security
IDSA-OS-CAM-001 Unauthorized Stream Capture Use OpenCV to see if a secondary script can hijack the camera while the main app is running.
IDSA-OS-CAM-002 Video Injection / Spoofing Use OpenCV to attempt to inject a pre-recorded video loop into the stream buffer.
IDSA-OS-CAM-003 Buffer Privacy / Local Leaks Use OpenCV to check if sensitive frames are left in /dev/shm or tmp directories after a capture.

Project Collaborators and Acknowledgements

We would like to take this opportunity to acknowledge the contribution of our professor Mandeep Pannu for guiding us into the right direction. This framework would not have been possible without you.
